Product Name:

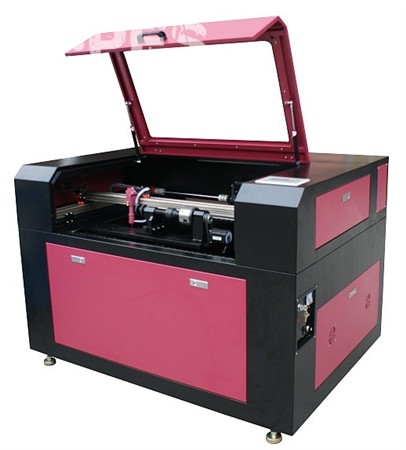

Motorized Up-down Table Engraver With Rotary Attachment

Product Type:

HS-S Series Motorized laser machine

Item Number:

HS-S1280

Processing Area:

1200×800mm

Introduction

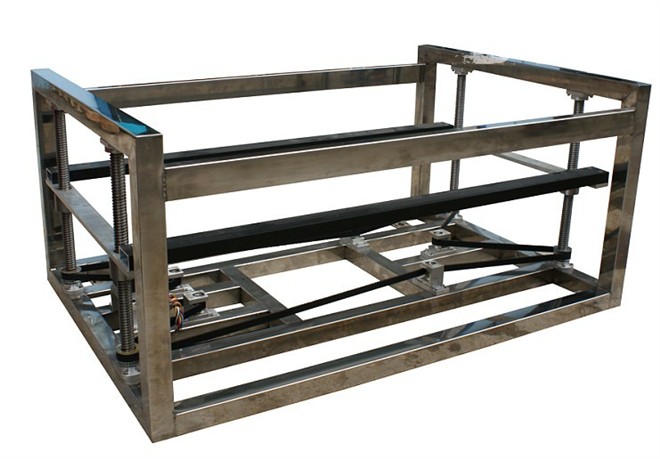

1. Automatic up and down table and unique auto-focus can engrave and cut materials with different levels;

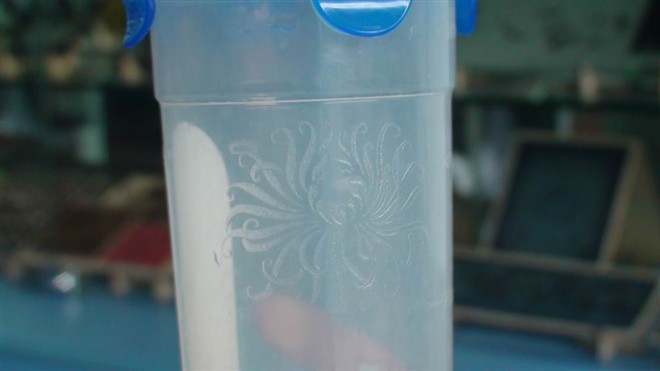

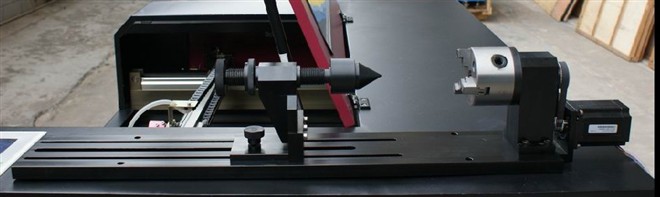

2.Rotary attachment can engrave cylinders effectively with vivid designs;

3.Adopting the combined guide rail with Italian technolygy, the cutting/engraving speed is enhanced by 20%.

Optional attachments

Red dot pointer, auto-focus, Synrad laser tube, beam expander.

Technical lndex:

Processing Area: 1200×800mm

Ascending and descending distance: 200mm/ 300mm

Laser Power: 60/ 80W

Max. cutting speed: 36000mm/min

Max. engraving speed: 64000mm/min

Electro motion ascending and descending weight: 20KGS

Resolution Ration: 0.0064mm

Minimum shaping character: Chinese Character: 2×2mm, letter: 1×1mm

Location precision: <0.01/mm

Power supply: AC110/220±10%, 50HZ/60HZ (optional).

Gross Power: 1100W

Graphic format supported: .DXF, .BMP, .PLT, .AI, .DST and so on;

Applicable industries:

Cylinders engraving and nonmetal materials cutting for advertising, decorative, crafts and gifts, model industries etc.

Applicable materials

Acrylic, MDF, plywood, bamboo products, color plates, fabrics, paper, leather, shellfish, coconut shell, horn, resin, animal skin, ABS boards, lamp etc.
